Transceiver Elio ATEX & IECEx

Custom Search 2

Elio

Transceiver ATEX IECEx

Optimized, open-ended transceiver

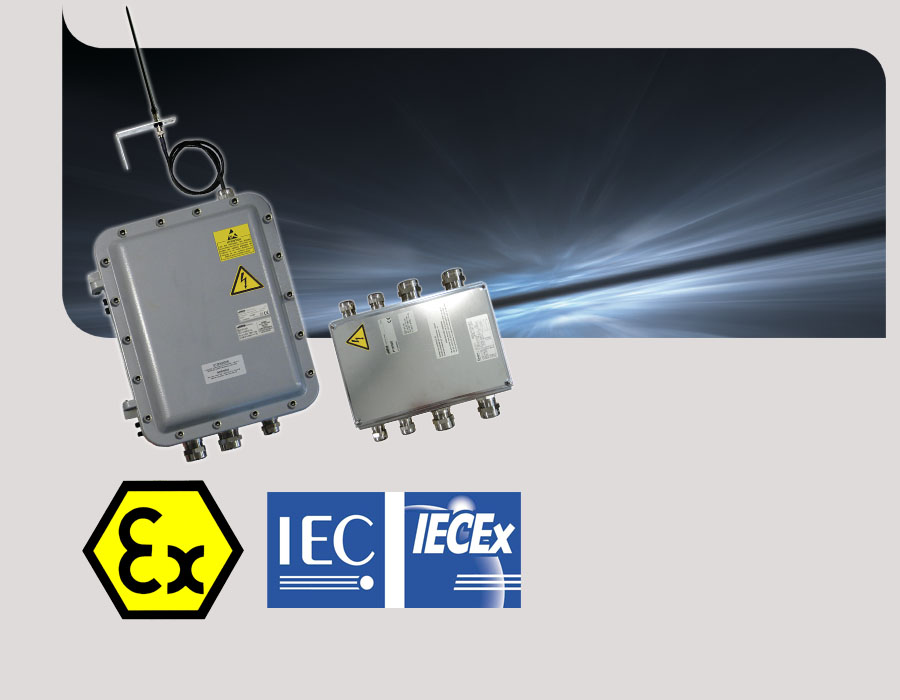

This explosion proof Transceiver for radio control is designed for use in zone 1, 2, 21 and 22 explosible atmospheres.
Explosion proof housing
Ex classified cable glands
12 function relays + 1 «On» relay + 2 safety relays
1 analog output in option
1 analog input in option
2 logical inputs in option
1 RS485 Modbus interface in option
IP66 tightness
Internal unique SIM card that contains all parameters linked with the application
Product configuration with software and USB connector (to be performed outside ATEX zone)
Safety stop PL e EN13849 and SIL 3 EN61508
Customizable bidirectional radio remote control link
11 frequencies in 418-419 MHz
64 frequencies in 433-434 MHz
12 frequencies in 869 MHz
64 frequencies in 911-918 MHz

Several options available for this radio control explosion proof Transceiver:
- Connection interface unit ATEX
- External antenna Kit with intrinsic safety barrier for standard Transceiver integration in another Explosion proof housing
